Welcome to the Cone Page

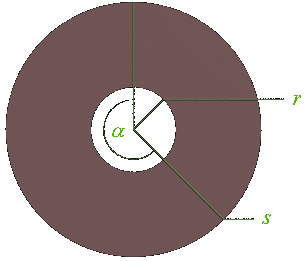

Cone Measurements 		Disk Measurements
Disk Outer Radius Formula Disk Inner Radius Formula
Minimum Arc Formula Cone Angle Formula
CONE CONSTRUCTION FOR MODEL BUILDING:
("Truncated Cone" or "Conical Frustum")
dot Create accurate cone shapes with precise bottom and top shapes
dot Given cone height (h), bottom diameter (b) and top diameter (a)
dot Determine inner (r) and outer (s) radius to cut, and minimum arc (alpha)
dot Determine the slope of the cone from the horizontal (beta)
EXAMPLE OF A MODEL CONSTRUCTED USING FORMULAS:
Venture-I (©2011 Sandy Zucker) Venture-I Detail (©2011 Sandy Zucker)
"Spaceship" Model: Venture-I Detail: Venture-I
Design & Images ©2011-2021 Sandy M. Zucker

External link contribution on Wikipedia under "Frustum" since 2009:
"Design paper models of conical frustum (truncated cones)"

For comments and contributions contact me at On-Line Contact Form
